ASP-100A

With nearly 20 years of ultrasound research history, we bring you the ASP-100A series for ophthalmology biometry.

5.7″ colour LED touch screen, more convenient for your operation.

Immersion & contact methods, precise measurement.

Built-in thermal printer, realise printing anytime.

I-station software enables massive storage, report transmission and printing.

Sensitive, accurate measurements show 8 groups with deviation, meanwhile.

With IOP(intraocular pressure) adjustment after getting tonometer measurement results.



A-San

10MHz red-light A scan probe

Resolution: 0.01mm

Accuracy: ±0.1mm

Gain adjustable: 0-120dB

Measurement range: 15~35mm(vel 1640m/s)

Measurements: ACD, Lens, Vitreous, and AXL

Examination modes: Support Normal, Cataract, Aphakic and Special eye model

Measurement mode: Immersion and contact, auto and manual

IOL formulas: SRK-II,SRK-T,BINKHORST,HOLLADAY,HOFFER-Q,HAIGIS

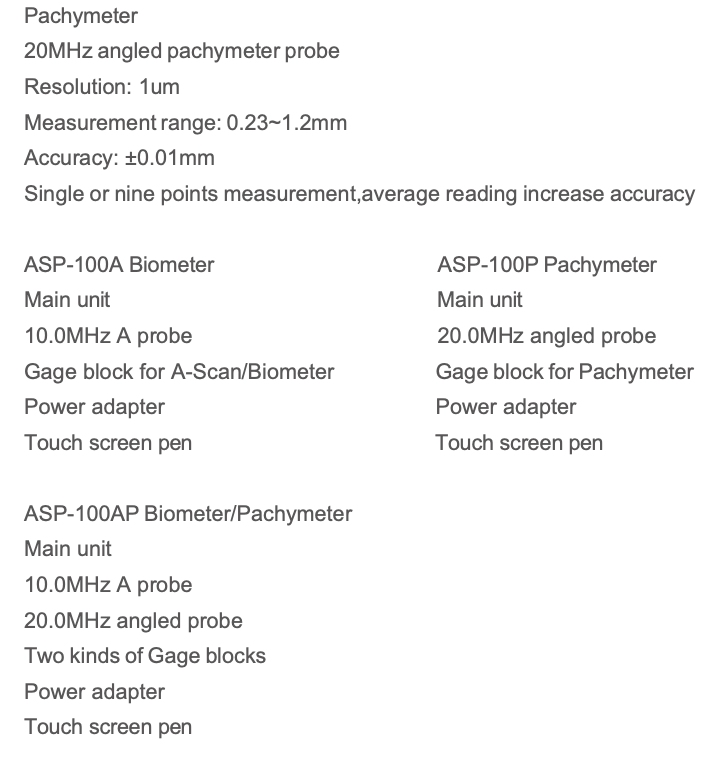

Pachymeter

20MHz angled pachymeter probe

Resolution: 1um

Measurement range: 0.23~1.2mm

Accuracy: ±0.01mm

Single or nine-point measurement, average reading increases accuracy
